Swan 60 FD

Main

Appendages
Keel : T-shaped keel (with bulb)
Category
Offshore racer-cruiser sailboat
Construction
Fiberglass reinforced epoxy: Sandwich PVC fiberglass with carbon fiber reinforcements
Country
Finland
EC design category
A
First built hull
2009
Helm
Twin helm wheels
Hull type
Monohull
Last built hull
2017
Model
Swan 60 FD
Rudder
Single spade rudder
Sailboat builder
Nautor's Swan
Sailboat designer
Frers Naval Architecture & Engineering
Standard public price ex. VAT (indicative only)
About 2 750 000 € (2016)
Trailerable
No
Unsinkable
No

Dimensions

Ballast Type
Lead
Ballast type
Carbon fiber fin with lead bulb
Ballast weight
7700.0
Beam
5.09
Displacement
18700.0
Draft
3.6
Hull length
18.86
Light displacement (MLC)
18700.0
Max Draft
3.6
Overall length
18.86
Waterline length
16.7

Sails

Asymmetric spinnaker area
320.0
Downwind sail area
445.85
E
8.55
Est. Forestay Length
26.42
Fore area
89.98
I
25.46
J
7.07
Jib area
95.0
Mainsail area
125.85
Mast configuration
Keel stepped mast
Number of levels of spreaders
2
P
24.32
Rigging type
Sloop Marconi 19/20
Rotating spars
No
Spars construction
Carbon fiber spars
Spreaders angle
Swept-back
Standing rigging
Single-strand (ROD)
Total area
193.33
Upwind sail area
220.85

Engine

Engine(s)
1 inboard engine
Engine(s) power
110.0
Engines amount
1
Fuel tank capacity
500.0
Fuel type
Diesel
Make
Volvo or Yanmar

Performance

Ballast ratio
41.0
Capsize Screening Formula
1.94
Comfort Ratio
26.35
Critical hull speed
9.92
Displacement-length ratio (DLR)
114.0
Downwind sail area to displacement
63.28
Upwind sail area to displacement
31.35

Accomodation

Berth(s)
6
Berth(s) max
9
Boiler capacity
50.0
Cabin(s)
3
Cockpit
Open aft cockpit
Freshwater tank capacity
400
Head(s)
3
Holding tank capacity
120.0

Saloon

Fore_cabin

Aft_cabin

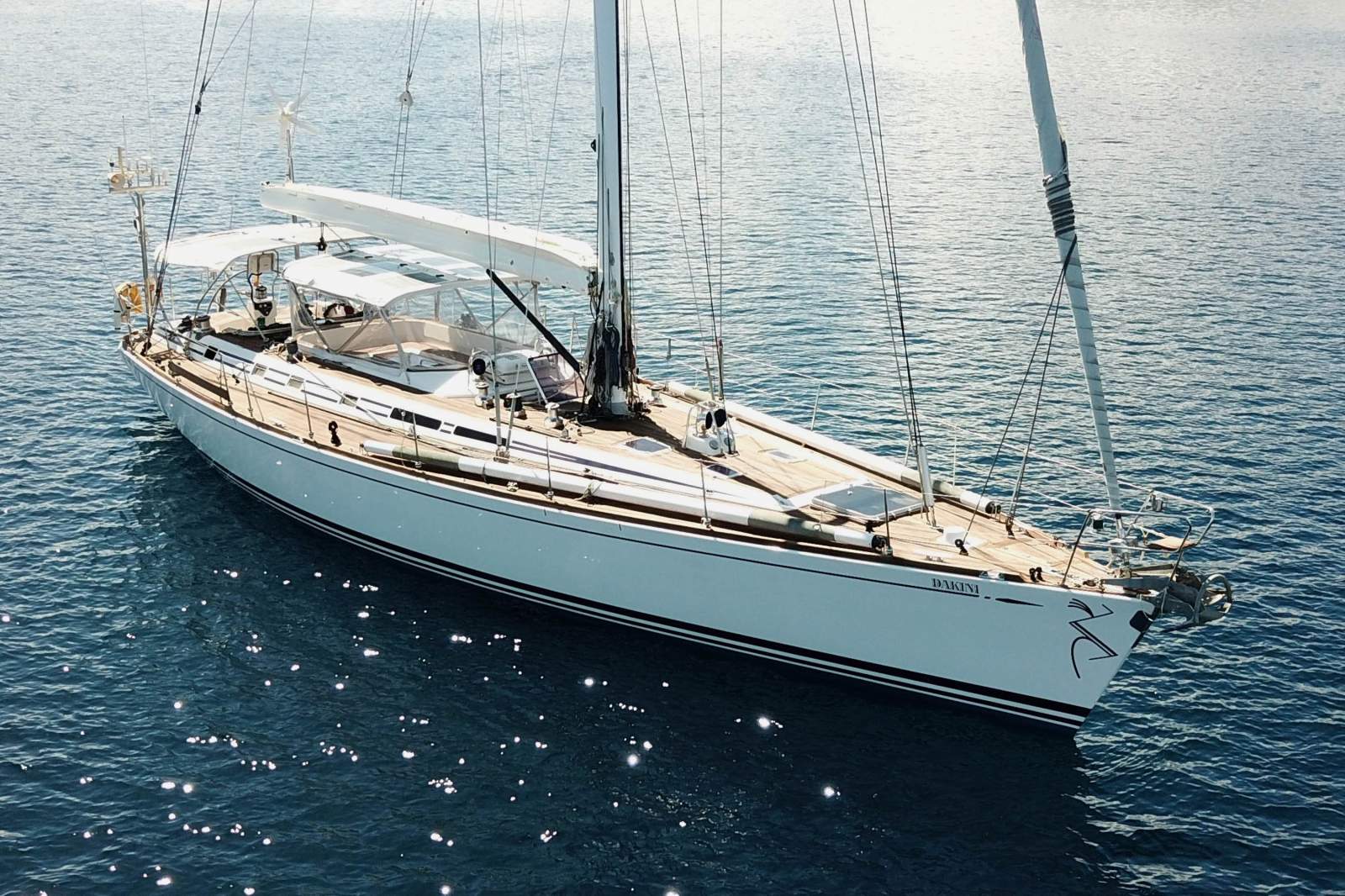

The Swan 60 FD is a high-performance sailing yacht designed and built by Nautor's Swan, a Finnish luxury yacht manufacturer. It is part of the Swan line of sailing boats, known for their exceptional craftsmanship, seaworthiness, and racing capabilities.

The Swan 60 FD is a fast cruiser-racer, combining comfort and speed. It has a sleek and elegant design, with a modern hull shape optimized for performance. The yacht features a spacious and well-appointed interior, offering luxurious accommodations for both cruising and racing purposes.

The length overall (LOA) of the Swan 60 FD is approximately 18.29 meters (60 feet), hence the name. It has a beam of around 5.18 meters (17 feet), providing ample space for a comfortable living area below deck. The yacht typically has a displacement of around 24,000 kilograms (52,910 pounds), ensuring stability and a smooth sailing experience.

The Swan 60 FD is equipped with a powerful sail plan, including a large mainsail and a range of headsails, allowing for excellent performance in various wind conditions. It features a carbon fiber mast and boom, contributing to its lightweight and rigidity. The yacht also incorporates advanced sailing technologies, such as hydraulic winches and a sophisticated sail control system, making it easy to handle even with a small crew.

Below deck, the Swan 60 FD offers a luxurious and well-designed interior. It typically includes a spacious saloon with comfortable seating, a fully equipped galley, multiple cabins, and bathrooms. The interior is crafted with high-quality materials and finishes, providing a stylish and comfortable living space for extended cruising or racing campaigns.

Overall, the Swan 60 FD is a high-performance sailing yacht that combines speed, comfort, and elegance. It is a popular choice among sailors who seek both thrilling racing experiences and luxurious cruising adventures.
