Dehler 29

Main

Appendages
Keel : L-shaped keel (with bulb)
Category
Cruiser-racer sailboat
Construction
GRP (glass reinforced polyester): - Hull: Single skin fiberglass polyester - Deck: Sandwich balsa fiberglass polyester
Country
Germany
EC design category
B
First built hull
1997
Helm
Single tiller
Hull type
Monohull
Model
Dehler 29
Number of hulls built
141
Rudder
Single spade rudder
Sailboat builder
Dehler
Sailboat designer
Judel/Vrolijk
Standard public price ex. VAT (indicative only)
About 75 500 € (2020)
Trailerable
No
Unsinkable
No
Version
Standard

Dimensions

Ballast type
Cast iron
Ballast weight
1120.0
Beam
2.99
Draft
1.58
French customs tonnage
8.52 Tx
Hull length
8.75
Light displacement (MLC)
3000.0
Mast height from DWL
14.05
Overall length
8.75
Waterline length
8.0

Sails

Downwind sail area
86.0
E
4.0
Gennaker area
46.1
Genoa area
25.0
I
11.25
J
3.15
Jib area
17.0
Mainsail area
26.0
Mast configuration
Keel stepped mast
Number of levels of spreaders
2
P
11.0
Rigging type
Sloop Marconi 9/10
Rotating spars
No
Spars construction
Aluminum spars
Spreaders angle
Swept-back
Standing rigging
1x19 strand wire
Symmetric spinnaker area
60.0
Upwind sail area
51.0

Engine

Engine(s)
1 inboard engine
Engine(s) power
12.0
Engines amount
1
Fuel tank capacity
60.0
Fuel type
Diesel

Performance

Ballast ratio
37.0
Critical hull speed
6.87
Displacement-length ratio (DLR)
166.0
Downwind sail area to displacement
41.34
Upwind sail area to displacement
24.52

Accomodation

Berth(s)
4
Berth(s) max
6
Cabin(s)
2
Cockpit
Closing aft cockpit with opening system
Freshwater tank capacity
100
Head(s)
1
Maximum headroom
1.81

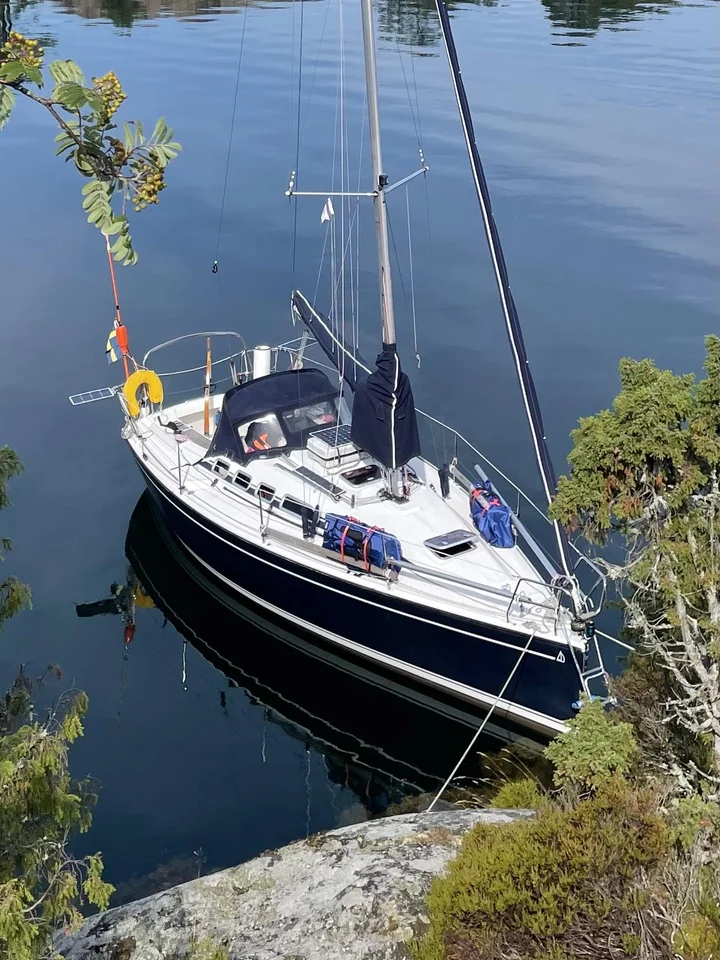

The Dehler 29 is a sailing boat manufactured by the German company Dehler Yachts. It is a small, performance-oriented cruiser designed for both racing and comfortable cruising.

Here are some key features and characteristics of the Dehler 29:

1. Design: The Dehler 29 features a modern and sleek design, with clean lines and a low-profile deck. It has a balanced hull shape, optimized for speed and stability.

2. Construction: The boat is built using advanced construction techniques, such as vacuum infusion technology, which ensures a lightweight and strong hull. The use of high-quality materials, such as fiberglass and carbon fiber, enhances its durability.

3. Performance: The Dehler 29 is known for its excellent sailing performance. It has a high aspect ratio rig, a deep keel, and a well-balanced hull, allowing it to sail efficiently in various wind conditions. It is responsive and agile, making it suitable for both racing and cruising.

4. Interior: Despite its compact size, the Dehler 29 offers a comfortable and functional interior. It typically features a spacious saloon with seating and a dining area, a well-equipped galley, a navigation station, a head (bathroom), and sleeping accommodations for up to four people.

5. Deck layout: The boat has a well-designed deck layout, optimized for easy handling and control. It features a large cockpit with ergonomic seating, a clear and uncluttered deck, and well-positioned winches and controls for efficient sail handling.

6. Options and customization: Dehler offers various options and customization choices for the 29, allowing owners to tailor the boat to their preferences. This includes different sail plans, keel options, interior layouts, and additional equipment.

7. Awards and recognition: The Dehler 29 has received several awards and accolades for its design and performance. It has been praised for its innovative features, quality construction, and overall sailing capabilities.

Overall, the Dehler 29 is a well-regarded sailing boat that combines performance, comfort, and versatility. It is suitable for sailors who enjoy both racing and cruising, and it offers a balance between speed and comfort on the water.
