CIRRUS 22

Main

Appendages
Fin w/spade rudder
Construction
FG
First built hull
1968
Hull type
Monohull
Last built hull
1972
Model
MD1
Sailboat builder
Westerly Marine Ltd.
Sailboat designer
John Butler

Dimensions

Ballast weight
660.0
Beam
2.44
Displacement
1470.0
Draft
1.07
Max Draft
1.07
Overall length
6.71
Waterline length
5.79

Sails

E
2.74
Est. Forestay Length
8.35
Fore area
10.47
I
7.92
J
2.64
Mainsail area
11.15
P
8.13
Total area
21.65

Engine

Fuel tank capacity
26.0
Fuel type
Diesel
Make
Volvo

Performance

Ballast ratio
44.91
Capsize Screening Formula
2.17
Comfort Ratio
15.76
Critical hull speed
5.84
Displacement-length ratio (DLR)
210.88
Upwind sail area to displacement
17.07

Accomodation

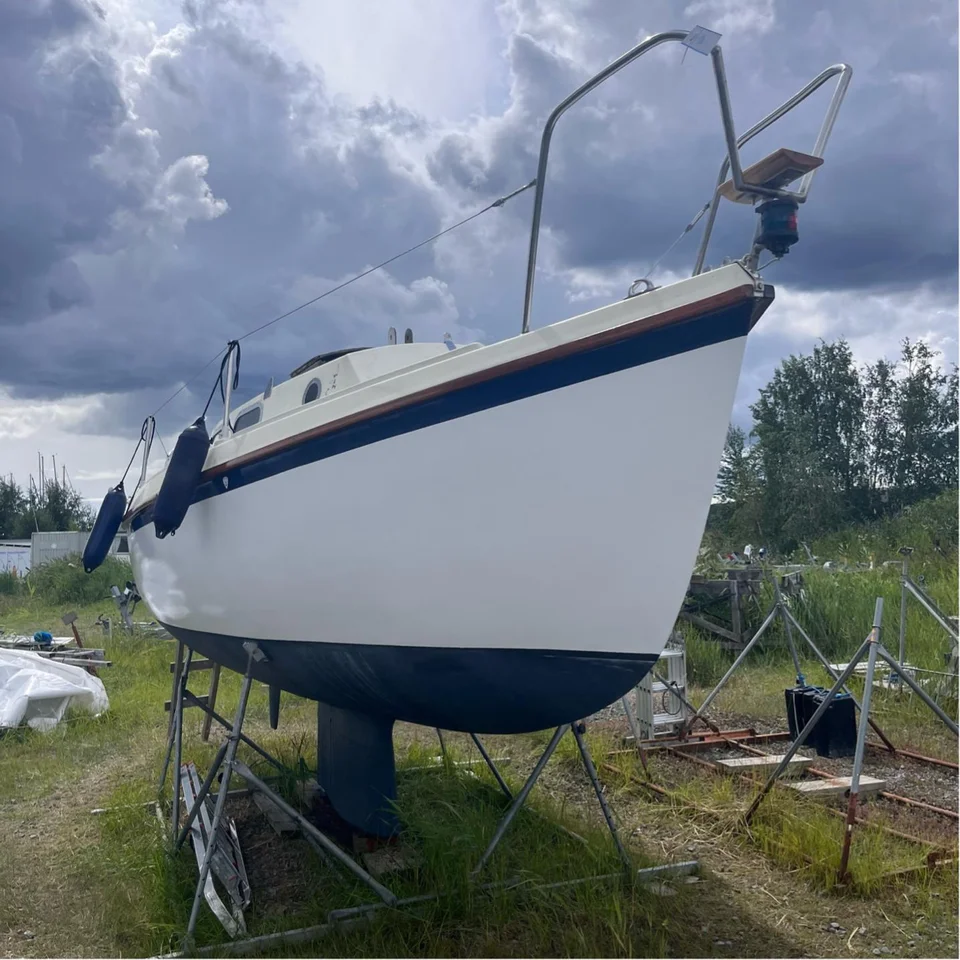

The Cirrus 22, also known as the Westerly Cirrus 22, is a popular sailing boat that was manufactured by Westerly Yachts in the United Kingdom. It was designed by Laurent Giles and first introduced in 1969. The Cirrus 22 is a small, but sturdy, cruising yacht that offers a comfortable and enjoyable sailing experience.

Here are some key features and characteristics of the Cirrus 22:

1. Design: The Cirrus 22 features a traditional, yet sleek design with a moderate displacement hull. It has a long fin keel and a transom-hung rudder, which provides good stability and maneuverability.

2. Size: The boat measures approximately 22 feet (6.7 meters) in length, with a beam (width) of around 7.5 feet (2.3 meters). Its compact size makes it easy to handle and suitable for single-handed sailing or small crews.

3. Accommodation: Despite its small size, the Cirrus 22 offers a surprisingly spacious and comfortable interior. It typically has a small forward cabin with a V-berth, a main saloon with seating and a folding table, a compact galley with a sink and stove, and a separate marine toilet.

4. Sailing Performance: The Cirrus 22 is known for its good sailing performance, especially in light to moderate winds. It has a fractional sloop rig with a mainsail and a genoa, which allows for easy handling and versatility. The boat is also equipped with winches and other necessary sailing equipment.

5. Construction: The Cirrus 22 was built using traditional fiberglass construction techniques, which ensures durability and strength. Westerly Yachts had a reputation for producing well-built boats, and the Cirrus 22 is no exception.

6. Popularity: The Cirrus 22 gained popularity due to its affordability, ease of handling, and comfortable interior. It became a popular choice for sailors looking for a small, yet capable, cruising yacht.

Overall, the Cirrus 22 (Westerly) is a well-regarded sailing boat that offers a combination of good performance, comfort, and affordability. It is suitable for coastal cruising, day sailing, and even some longer passages, making it a versatile option for sailors of various experience levels.
