Hanse 508

Main

Appendages
Keel : L-shaped keel (with bulb)
Category
Offshore cruising sailboat
Construction
GRP (glass reinforced polyester): - Hull: Sandwich balsa fiberglass polyester - Deck: Sandwich balsa fiberglass polyester
Country
Germany
EC design category
A
First built hull
2018
Helm
Twin helm wheels
Hull type
Monohull
Model
Hanse 508
Rudder
Single spade rudder
Sailboat builder
Hanse
Sailboat designer
Judel/Vrolijk
Standard public price ex. VAT (indicative only)
About 281 000 € (2020)
Trailerable
No
Unsinkable
No
Version
Shoal draft

Dimensions

Ballast type
Cast iron
Ballast weight
4730.0
Beam
4.75
Draft
1.98
Hull length
14.93
Mast height from DWL
22.05
Maximum displacement (MLDC)
15100.0
Overall length
15.55
Waterline length
13.54

Sails

Asymmetric spinnaker area
200.0
Code 0 area
87.0
Downwind sail area
266.5
E
6.45
I
19.1
J
6.13
Jib area
51.5
Mainsail area
66.5
Mast configuration
Deck stepped mast
Number of levels of spreaders
2
P
18.33
Rigging type
Sloop Marconi 19/20
Rotating spars
No
Spars construction
Aluminum spars
Spreaders angle
22 °
Standing rigging
1x19 strand wire discontinuous
Upwind sail area
118.0

Engine

Engine(s)
1 inboard engine
Engine(s) power
80.0
Engines amount
1
Fuel tank capacity
280.0
Fuel type
Diesel

Performance

Critical hull speed
8.93
Displacement-length ratio (DLR)
340.0
Maximum righting moment
10500.0
Righting moment @ 1°
420.0
Righting moment @ 30°
9000.0

Accomodation

Berth(s)
7
Berth(s) max
10
Boiler capacity
20.0
Cabin(s)
3
Cabin(s) max
5
Cockpit
Open aft cockpit
Freshwater tank capacity
630
Head(s)
2
Head(s) max
4
Holding tank capacity
60.0

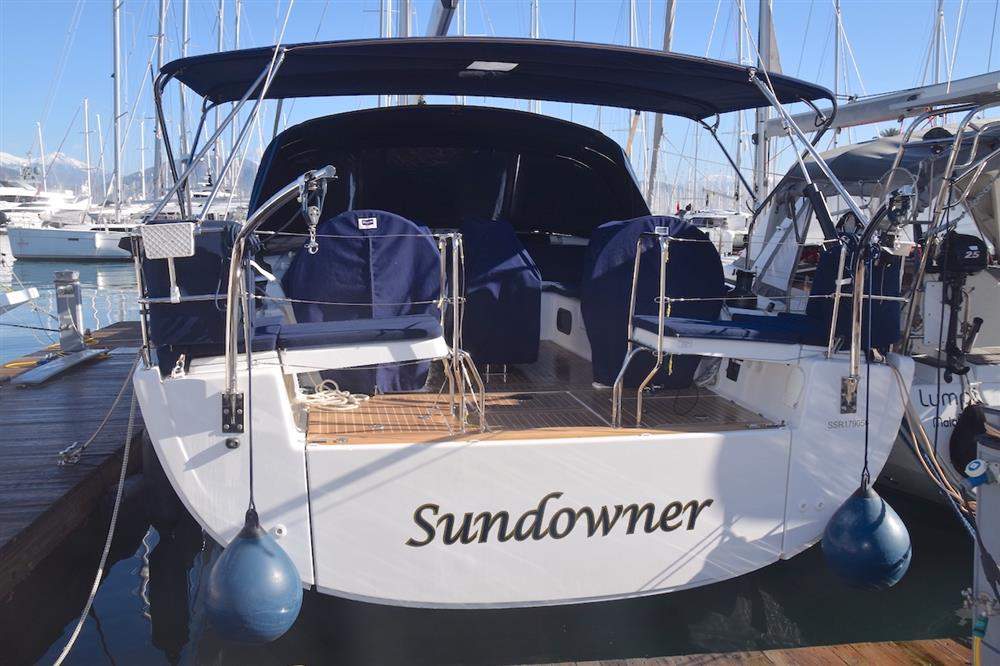

The Hanse 508 is a sailing yacht manufactured by Hanse Yachts, a German boat builder known for producing high-quality and innovative sailing boats. The Hanse 508 is part of the Hanse 5 series, which includes various models ranging from 40 to 67 feet in length.

The Hanse 508 is a modern and stylish cruising yacht designed for comfortable and enjoyable sailing experiences. It features a sleek and streamlined hull design, with a wide beam and a spacious cockpit. The boat's deck layout is optimized for easy handling and maneuverability, making it suitable for both experienced sailors and those new to sailing.

The interior of the Hanse 508 is designed to provide maximum comfort and functionality. It offers a spacious and well-lit living area, with large windows that allow for plenty of natural light. The boat can accommodate up to six guests in three cabins, with the option for additional berths if needed. The cabins are well-appointed and offer ample storage space for extended cruising.

The Hanse 508 is equipped with a range of modern features and technologies to enhance the sailing experience. It features a self-tacking jib system, which makes it easy to handle and maneuver the boat even in challenging conditions. The boat also comes with a powerful and efficient sail plan, allowing for excellent performance under sail.

In terms of performance, the Hanse 508 is known for its speed and agility. It is designed to be easily sailed single-handed or with a small crew, thanks to its well-designed deck layout and intuitive controls. The boat's hull shape and keel configuration provide excellent stability and balance, ensuring a smooth and comfortable ride even in rough seas.

Overall, the Hanse 508 is a well-designed and versatile sailing yacht that offers a combination of comfort, performance, and style. Whether you are planning a weekend getaway or a long-distance cruise, the Hanse 508 is a reliable and capable choice for sailors of all levels.
