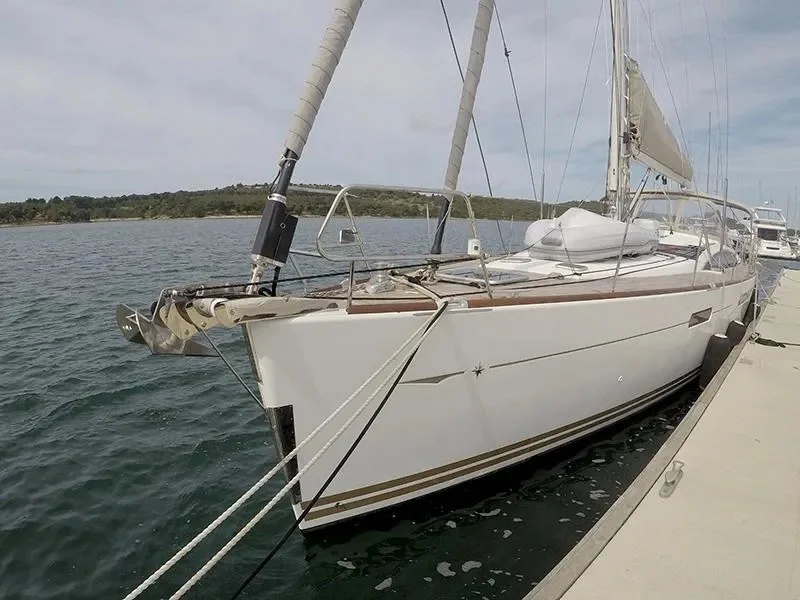

Jeanneau 57

Main

Appendages
Keel : L-shaped keel (with bulb)
Category
Offshore cruising sailboat
Construction
GRP (glass reinforced polyester): - Hull: Single skin fiberglass polyester - Deck: Sandwich balsa fiberglass polyester
Country
France
EC design category
A
First built hull
2009
Helm
Twin helm wheels
Hull type
Monohull
Last built hull
2016
Model
Jeanneau 57
Rudder
Single spade rudder
Sailboat builder
Jeanneau
Sailboat designer
Philippe BriandGarroni DesignJeanneau Design Office
Sailboat range
Jeanneau Yachts
Standard public price ex. VAT (indicative only)
About 485 000 € (2015)
Trailerable
No
Unsinkable
No
Version
Standard

Dimensions

Ballast type
Cast iron
Ballast weight
6100.0
Beam
5.0
Capacity
6300.0
Draft
2.5
Hull length
17.28
Light displacement (MLC)
21450.0
Mast height from DWL
24.2
Maximum displacement (MLDC)
27750.0
Overall length
17.78
Waterline length
15.3

Sails

Asymmetric spinnaker area
202.0
Downwind sail area
308.0
E
6.4
Genoa area
58.0
I
21.0
J
6.68
Mainsail area
88.0
Mast configuration
Keel stepped mast
Number of levels of spreaders
3
P
19.59
Rigging type
Sloop Marconi fractional
Rotating spars
No
Spars construction
Aluminum spars
Spreaders angle
Swept-back
Standing rigging
Dyform discontinuous
Symmetric spinnaker area
220.0
Upwind sail area
146.0

Engine

Engine(s)
1 inboard engine
Engine(s) power
150.0
Engines amount
1
Fuel tank capacity
420.0
Fuel type
Diesel

Performance

Ballast ratio
28.0
Critical hull speed
9.49
Displacement-length ratio (DLR)
170.0
Downwind sail area to displacement
39.9
Upwind sail area to displacement
18.91

Accomodation

Berth(s)
4
Berth(s) max
12
Boiler capacity
60.0
Cabin(s)
2
Cabin(s) max
5
Cockpit
Closed aft cockpit
Freshwater tank capacity
930
Fridge/ice-box capacity
300.0
Galley headroom
2.03
Head(s)
2
Head(s) max
4
Holding tank capacity
85.0

Saloon

Maximum headroom
2.02

Fore_cabin

Berth length
2.1
Berth width
1.6
Maximum headroom
2.02

Aft_cabin

Berth length
2.1
Berth width
1.67
Maximum headroom
2.04
The Jeanneau 57 is a luxurious sailing yacht designed for long-distance cruising and comfortable living on board. It is part of the Jeanneau Yachts range, known for their performance, elegance, and seaworthiness.

The Jeanneau 57 features a modern and sleek design, with clean lines and a spacious cockpit. It has a large, comfortable cockpit area with dual helm stations, allowing for easy handling and maneuverability. The cockpit is also equipped with a large folding table and ample seating, perfect for outdoor dining and entertaining.

The interior of the Jeanneau 57 is designed to provide maximum comfort and functionality. It offers a variety of layout options, with multiple cabin configurations to suit different needs. The main saloon is spacious and well-lit, with large windows that provide panoramic views. The galley is fully equipped with modern appliances and ample storage space.

The Jeanneau 57 offers a high level of performance, thanks to its powerful sail plan and efficient hull design. It is equipped with a furling mainsail and genoa, making it easy to handle and sail single-handedly if desired. The yacht also features a powerful engine for motor cruising when needed.

In terms of accommodations, the Jeanneau 57 can comfortably sleep up to 10 people, depending on the chosen layout. It offers a spacious owner's cabin with an ensuite bathroom, as well as additional guest cabins with their own bathrooms. The yacht is designed to provide a luxurious and comfortable living experience, with high-quality finishes and attention to detail throughout.

Overall, the Jeanneau 57 is a high-end sailing yacht that combines performance, comfort, and style. It is suitable for both experienced sailors and those looking for a luxurious cruising experience.
